Распиновка ВСМ (Блока комфорта) 2008 и 2011 год

Coced

By Coced,
in Electric (wires, lamps, etc.)

 Share Followers 0

Recommended Posts

Coced

Coced 89

Posted
Posted

CTS 2008

Разъем х1




Разъем х2



Разъем х3

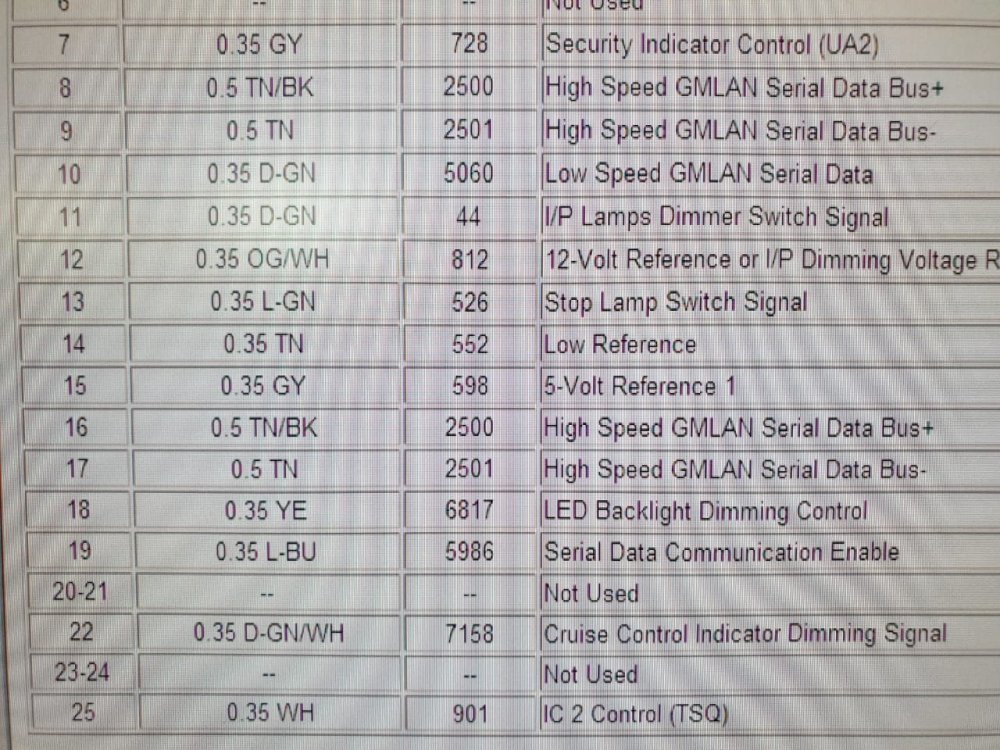

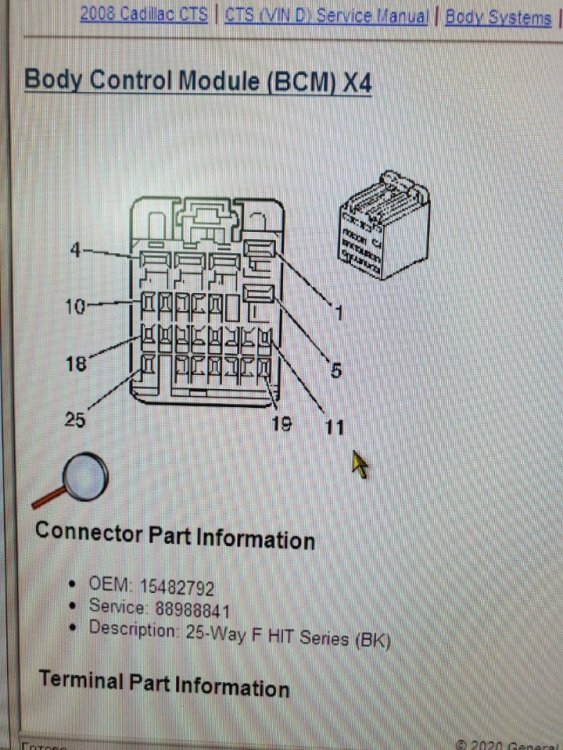

Разъем х4




Разъем х5



Разъем х6



Разъем х7




CTS 2011

Разъем х1



Разъем х2


Разъем х3

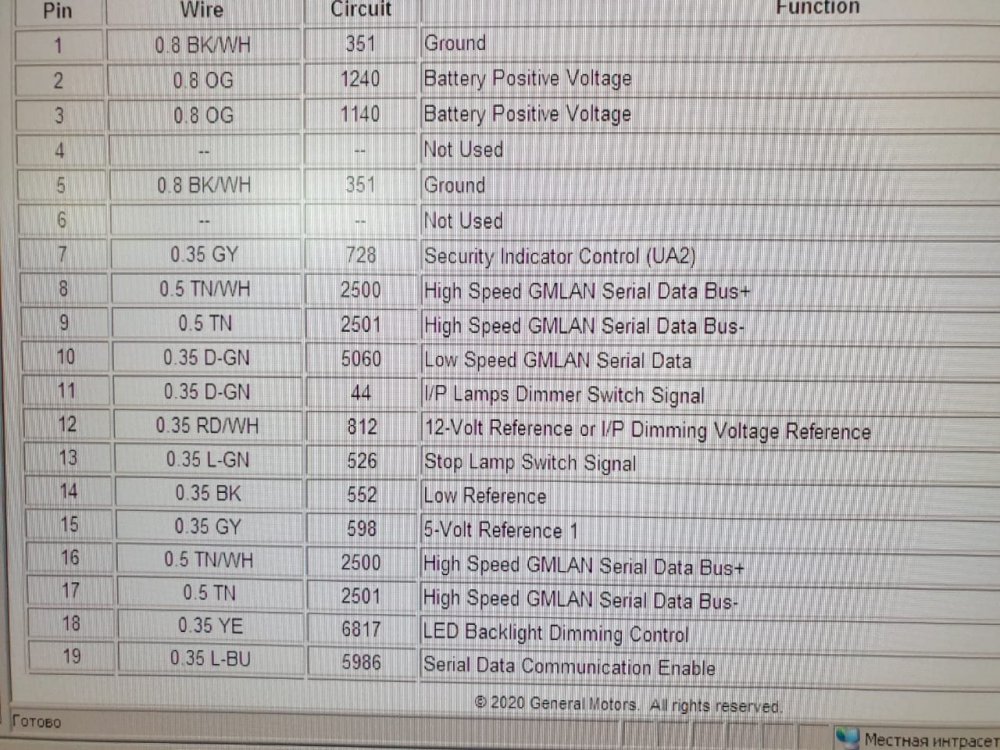

Разъем х4



Разъем х5



Разъем х6


Разъем х7





Link to post
Share on other sites
